HDMI Extender Cascade Connection 4K 120M CAT6 Cat5e/6/7 Cable full HD 1080P

Description

About the product

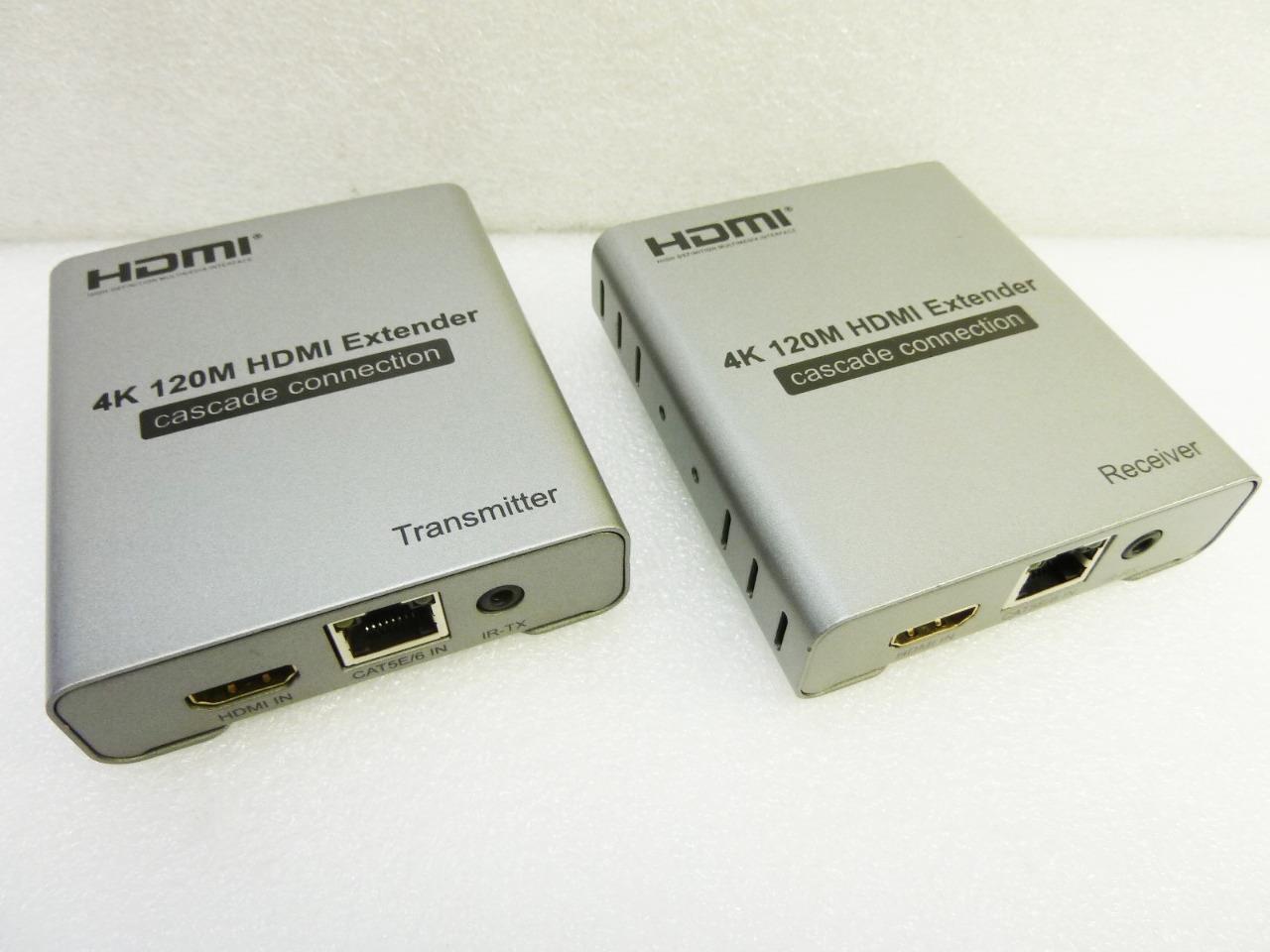

4K 120 Meters HDMI Extender with Cascade Connection;

• Connect the HDMI receiver to the HDTV display with HDMI cable.
• Use one Cat5e/6 cable up to 120m to connect the Sender and Receiver.
• Connect the “IR receiver “to “IR-TX” port on the transmitter, and “IR transmitter ” into the “IR-RX” on the receiver, and make sure the IR transmitter aim at IR receiver of the controlled device if you need the IR control function.
• Connect two pieces of 5V power supply to the transmitter and receiver, the power supply for the equipment, and the LED indicator light is on.
• Multipoint to multipoint match setting: when multipoint to multipoint connecting and multiple TX and multiple RX connect to the switch, the IP extender can match based on “SET” setting (eg: “SET” of TX is 0001, “SET” of RX is 0001
• Supports IR pass back(remote control the source at the receiver’s side)and cascading connection (max. 8 receivers can be linked).
• For better picture quality and longer distance transfer, we recommend to use Cat 6 or Cat 7 cable.
• Support Point-to-Point, Multi-receiver cascade- Connect your HDMI source device (PC, game console, Blu-ray player, media player) to the Transmitter, utilize existing Ethernet structure in your house/office to connect the transmitter to Receiver, then connect your HDTV from a remote location to the Receiver with an HDMI cable; HDMI cables are required and sold separately
